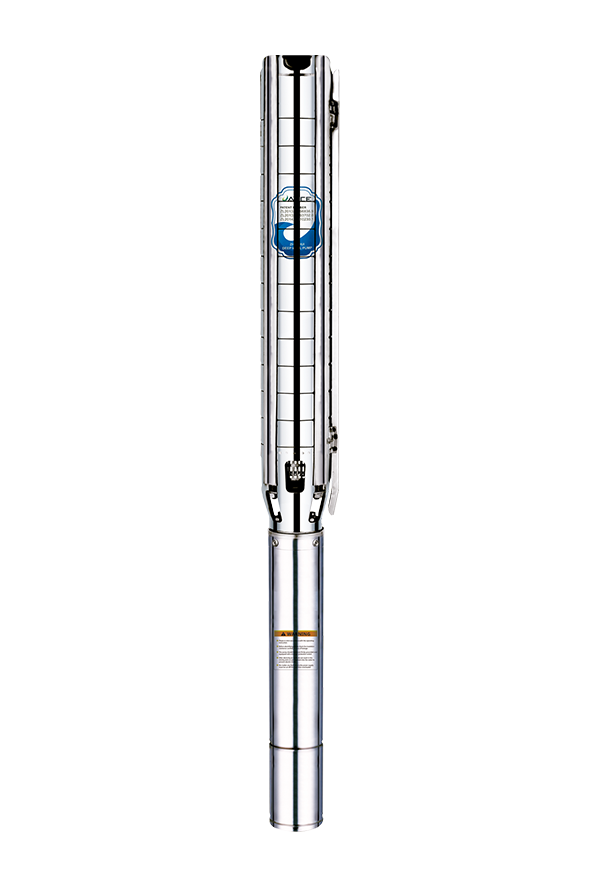

Customized irrigation deep well water pump

Features
Available with stainless steel pump head, effective against the corrosion and abrasive wear;
Edible oil filled motor, stable& reliable running with pressure regulating membrane;
Available with controller box, bring about general protection;
Installation in 6" or larger boreholes.
Optional Available On Request
Discharge chamber is available with 3"or 4"

Using condition
Max.ambient temperature<35°
Max immersion depth 100m
Liquid: PH6.O-8.5
Min.internal diameter of well >5.5"

Application
Buildinglconstruction work/Domestic water supply
lrrigation and Small water work
Landscaping
Water conservancy system
Factory

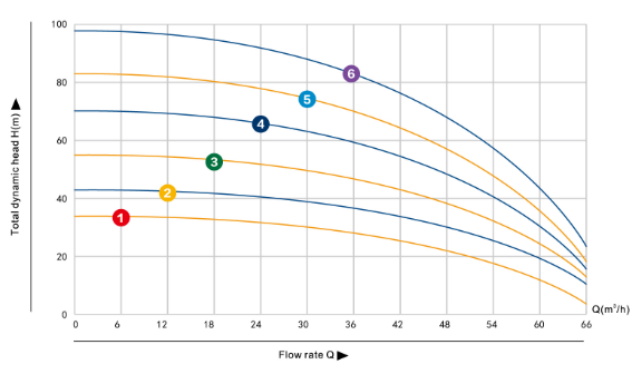

NO.	Model	Power		Outlet Diameter	Flow Rate(m3/h)	0	6	12	18	24	30	36	42	46	48	54	60	66
		KW	HP
1	6SP46-18/2-3.0	3.0	4.0	3’	H{m}	35	33	31	29	27	25	23	21	19	18	13	10	4
2	6SP46-26/3-5.5	5.5	7.5	3’		42	41	40	38	36	33	31	28	27	25	21	16	10
3	6SP46-34/4-7.5	7.5	10.0	3’		56	55	53	51	48	45	41	38	36	34	28	21	13
4	6SP46-42/5-7.5	7.5	10.0	3’		70	68	66	64	60	56	51	47	44	42	35	26	16
5	6SP46-50/6-9.2	9.2	12.3	3’		84	82	80	76	72	67	62	57	53	51	42	32	19
6	6SP46-60/7-11.0	11	15.0	3’		98	96	93	89	84	78	72	66	62	50	49	37	23
