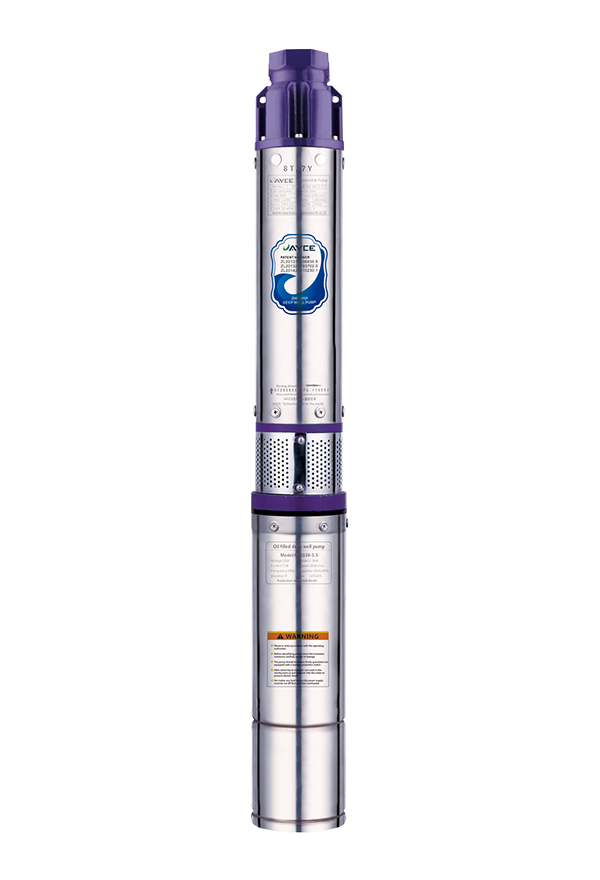

Customized 3.5In iron steel deep well water pump

Features
Engineering plastic impeller
Make the product more flow,high head and prolonging service life
Full voltage
With the sand storage
Anti sand completely

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid: PH6.0-8.5
Min.internal diameter of well>3.5""

Application:
Building/construction work/Domestic water supply;
Irrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

Packaging&Delivery

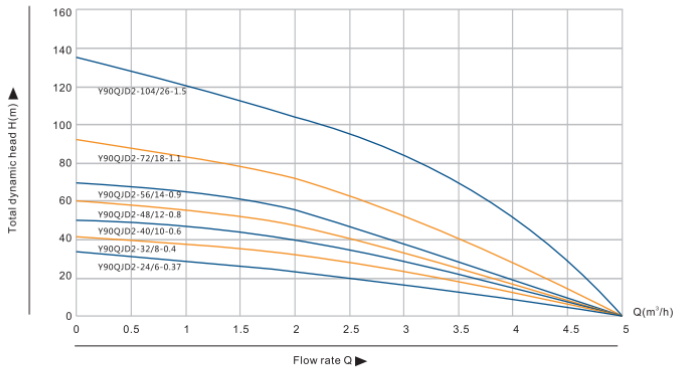

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	1	2	3	4
		KW	HP
1	Y90QJD2-24/6-0.37	0.37	0.55	1.5’	92	220	H{m}	34	27	24	15	8
2	Y90QJD2-32/8-0.4	0.4	0.55	1.5’	92	220		42	37	32	20	10
3	Y90QJD2-40/10-0.6	0.6	0.8	1.5’	92	220		50	46	40	25	12
4	Y90QJD2-48/12-0.8	0.8	1.0	1.5’	92	220		60	55	48	30	15
5	Y90QJD2-56/14-0.9	0.9	1.1	1.5’	92	220		70	65	56	38	18
6	Y90QJD2-72/18-1.1	1.1	1.5	1.5’	92	220		92	82	72	48	26
7	Y90QJD2-104/26-1.5	1.5	2.0	1.5’	92	220		135	120	104	89	57
