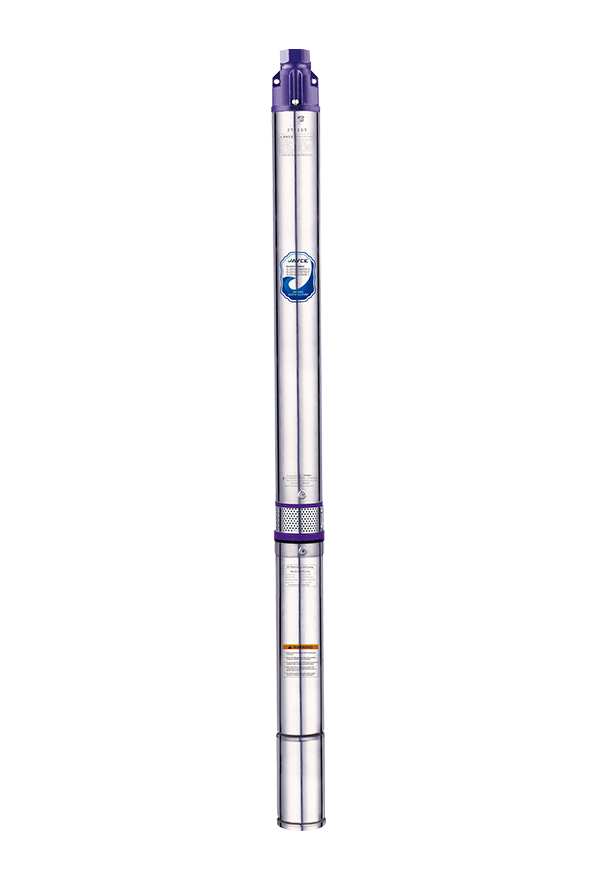

3In iron steel deep well water pump quotation
  • 3In iron steel deep well water pump quotation

3In iron steel deep well water pump quotation

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JAYCE
  • Model Number: Y75QJD
  • Material: cast iron
  • Voltage: 220-240v
  • Maximum diameter:75mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information

  • Features
    Double oil-seal  Its design features to assure positive, dependable seating protection.
    Strict standard and experienced assembling
    Mark on the Jayce brand and well packed only after passing operating test
    Finished pumps are 100% checked and tested strictly

    Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.0-8.5
    Min.internal diameter of well>3"

    Application:
    Building/construction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.

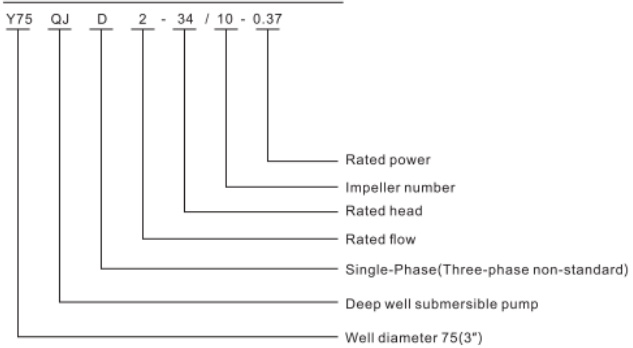

    Y75QJD Series model example

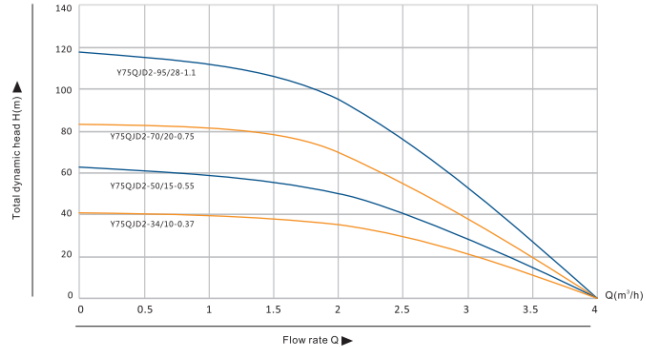

    Y75QJD2 Performance curve


    Y75QJD2 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)


    0


    1


    2

    3

    KW

    HP

    1

    Y75QJD2-34/10-0.37

    0.37

    0.5

    		 1’

    75

    220





    H{m}

    41

    39

    35

    21

    2

    Y75QJD2-50/15-0.55

    0.55

    0.75

    		 1’

    75

    220

    63

    58

    50

    29

    3

    Y75QJD2-70/20-0.75

    0.75

    1.0

    1’

    75

    220

    83

    77

    70

    38

    4

    Y75QJD2-95/28-1.1

    1.1

    1.5

    1’

    75

    220

    118

    108

    95

    53
