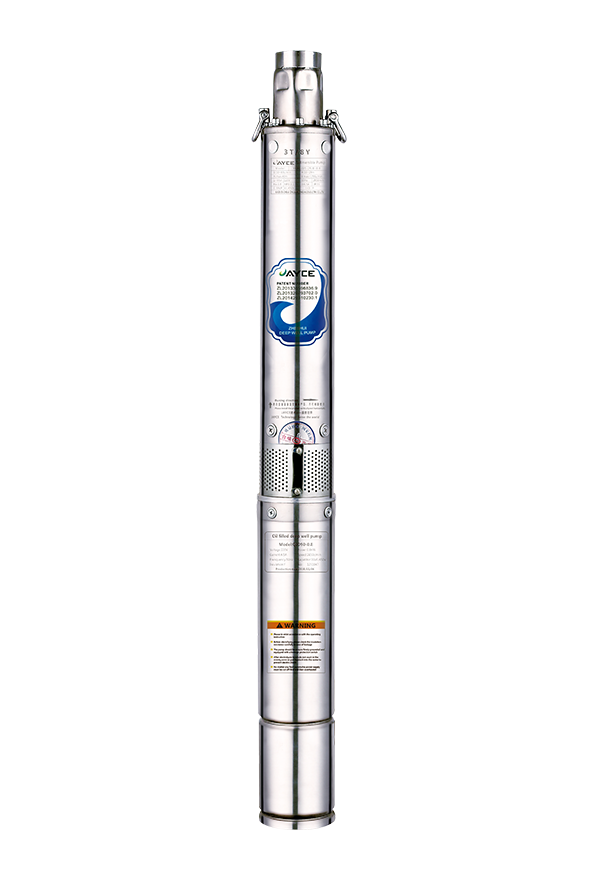

Deep Well Submersible Pump manufacturers、Customized

Features
All stainless steel
Environmental and prolonging the service life
Finished pumps are 100% checked and tested strictly
Upper shaft sleeve design
High head
Economical and practical

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid: PH6.0-8.5
Min.internal diameter of well>3.5""

Application:
Buildinglconstruction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

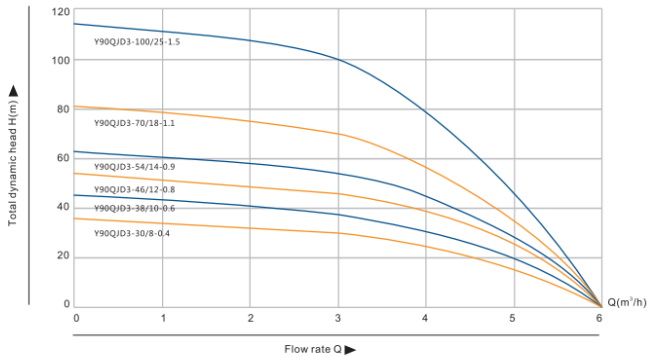

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	1	2	3	4	5
		KW	HP
1	Y90QJD3-30/8-0.4	0.4	0.55	1.5’	92	220	H{m}	36	34	32	30	24	18
2	Y90QJD3-38/10-0.6	0.6	0.8	1.5’	92	220		45	42	40	38	27	21
3	Y90QJD3-46/12-0.8	0.8	1.0	1.5’	92	220		54	51	48	46	34	26
4	Y90QJD3-54/14-0.9	0.9	1.1	1.5’	92	220		63	58	56	54	38	29
5	Y90QJD3-70/18-1.1	1.1	1.5	1.5’	92	220		81	75	73	70	49	38
6	Y90QJD3-100/25-1.5	1.5	2.0	1.5’	92	220		115	105	102	100	72	56
