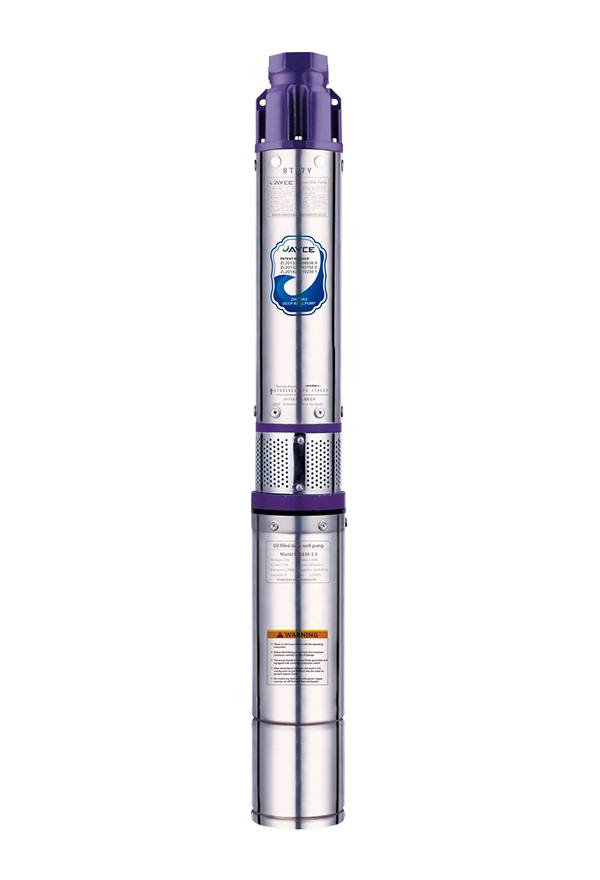

Civil deep well pump manufacturers
  • Civil deep well pump manufacturers

Civil deep well pump manufacturers

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JAYCE
  • Model Number: 90QJD2
  • Material: cast iron
  • Voltage: 220-240v
  • Maximum diameter:90mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information

  • Features
    Edible grade oil
    To prevent pollution ensure the water safe
    Full voltage
    With the sand storage
    Anti sand completely

    Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.0-8.5
    Min.internal diameter of well>3.5""

    Application:
    Building/construction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.

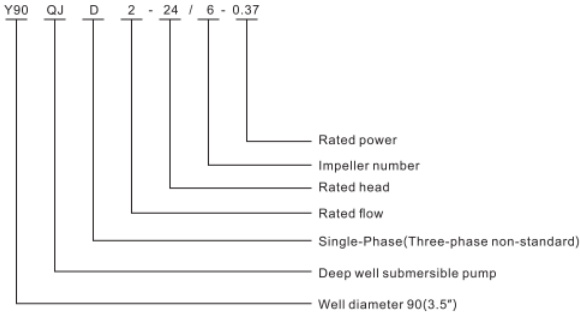

    Y90QJD Series model example

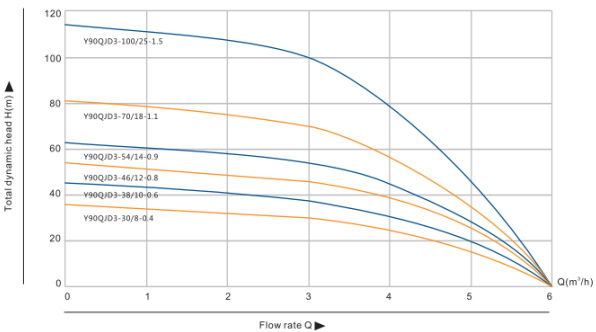

    Y90QJD3 Performance curve


    Y90QJD3 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)



    0



    1



    2

    3

    4

    5

    KW

    HP

    1

    Y90QJD3-30/8-0.4

    0.4

    0.55

    		 1.5’

    92

    220







    H{m}

    36

    34

    32

    30

    24

    18

    2

    Y90QJD3-38/10-0.6

    0.6

    0.8

    		 1.5’

    92

    220

    45

    42

    40

    38

    27

    21

    3

    Y90QJD3-46/12-0.8

    0.8

    1.0

    1.5’

    92

    220

    54

    51

    48

    46

    34

    26

    4

    Y90QJD3-54/14-0.9

    0.9

    1.1

    1.5’

    92

    220

    63

    58

    56

    54

    38

    29

    5

    Y90QJD3-70/18-1.1

    1.1

    1.5

    1.5’

    92

    220

    81

    75

    73

    70

    49

    38

    6

    Y90QJD3-100/25-1.5

    1.5

    2.0

    1.5’

    92

    220

    115

    105

    102

    100

    72

    56
