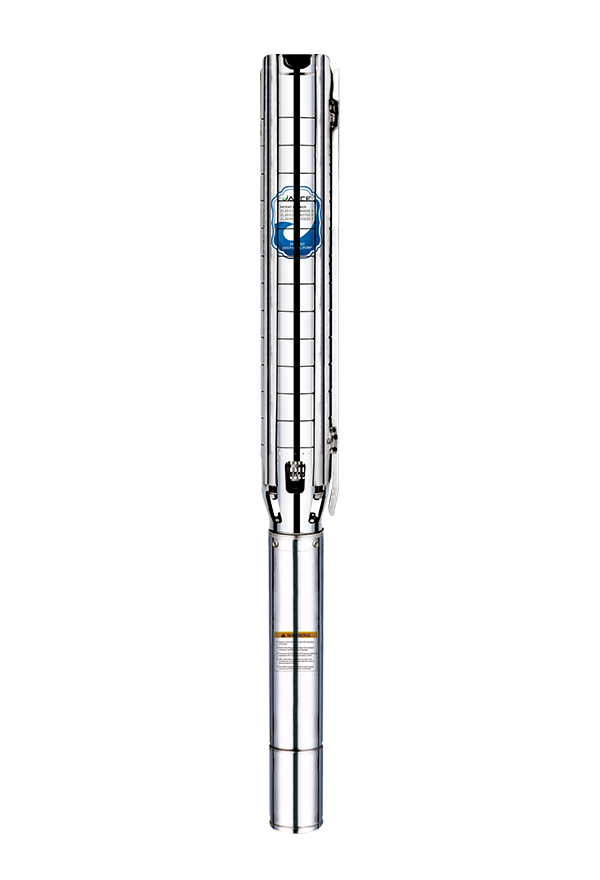

China industrial applications deep well pump suppliers

Features
Edible oil filled motor, stable& reliable running with pressure regulating membrane;
Available with pump casing with plug, integrated stage floating impellers;
Installation in 6" or larger boreholes.

Using condition
Max.ambient temperature<35°
Max immersion depth 100m
Liquid: PH6.O-8.5
Min.internal diameter of well >5.5~

Application:
Buildinglconstruction work/Domestic water supplyIrrigation and Small water work
Landscaping
Water conservancy system
Factory

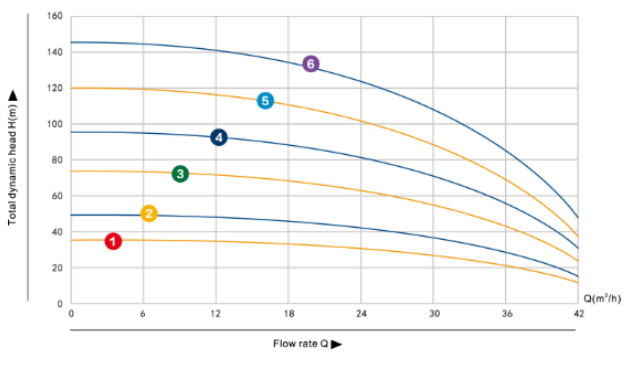

NO.	Model	Power		Outlet Diameter	Flow Rate(m3/h)	0	6	12	18	24	30	36	42
		KW	HP
1	6SP30-24/3-3.0	3.0	4.0	3’	H{m}	36	35	32	30	29	24	18	12
2	6SP30-32/4-4.0	4.0	5.5	3’		48	46	43	40	38	32	24	16
3	6SP30-48/6-5.5	5.5	7.5	3’		72	69	65	61	57	49	36	23
4	6SP30-64/8-7.5	7.5	10.0	3’		96	93	86	81	76	65	48	31
5	6SP30-80/10-9.2	9.2	12.3	3’		120	116	108	101	95	81	60	39
6	6SP30-104/13-11.0	11	15.0	3’		144	139	129	121	114	100	72	47
