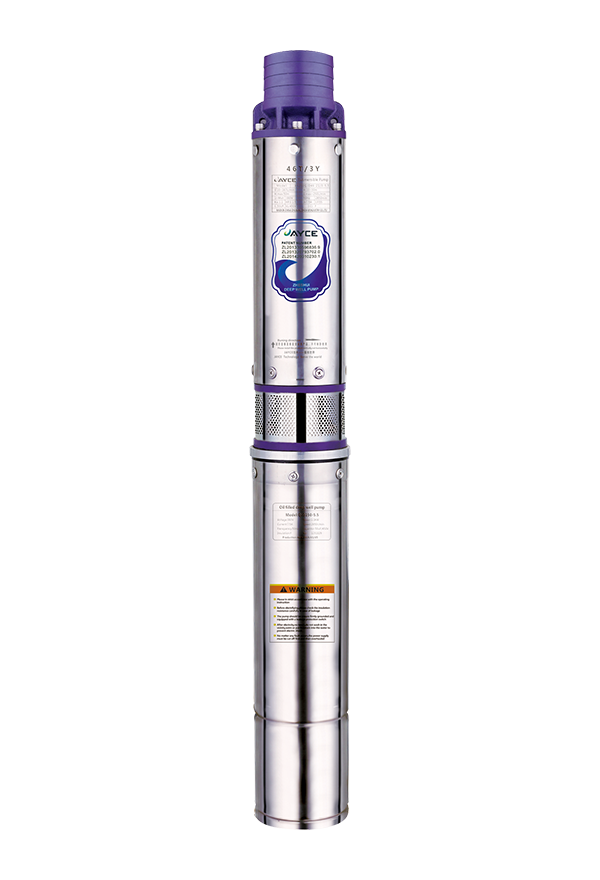

Pump with electric motor pricelist

Featuring
Over load protection Protects the motor against unstable voltage supply by reducing speed or stopping the pump
Dry running protection Stops and prevents the pump from damage in case of dry running

Using condition
Max.ambient temperature<35°
Max immersion depth 300m
Liquid: PH6.O-8.5
Min.internal diameter of well >5.5"

Application
Building/construction work/Domestic water supply
Irrigation and Small water work
Landscaping
Water conservancy system
Factory

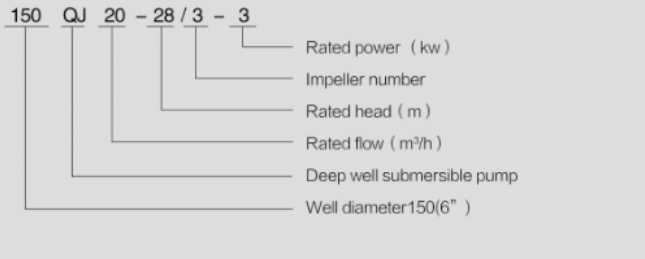

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Flow Rate(m3/h)	0	12	16	20	22	24
		KW	HP
1	150QJ20-28/3-3	3.0	4.0	3.0’	142	H{m}	47	37	32	27	17	10
2	150QJ20-36/4-4	4.0	5.5	3.0’	142		56	46	41	36	26	15
3	150QJ20-64/7-5.5	5.5	7.5	3.0’	142		93	78	69	63	50	40
4	150QJ20-82/9-7.5	7.5	10.0	3.0’	142		125	105	93	81	65	55
