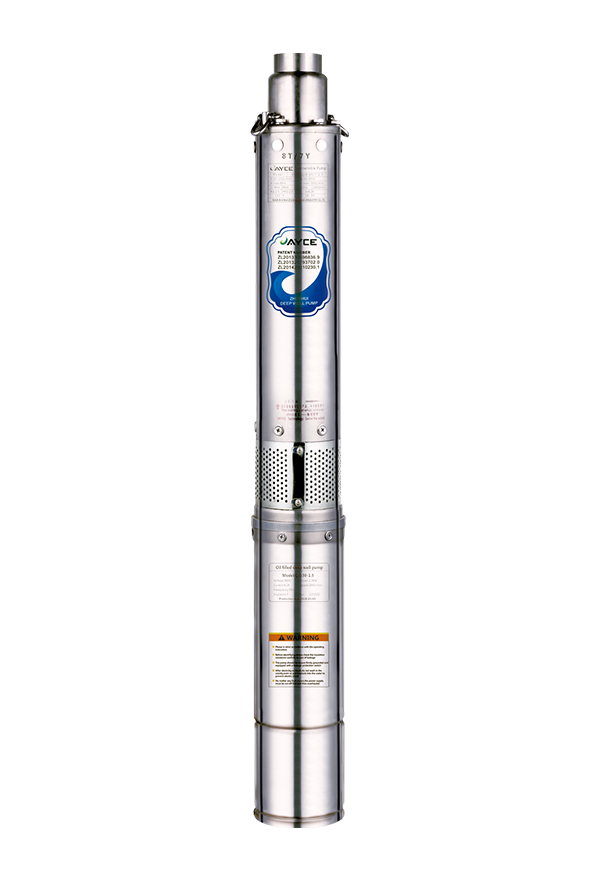

Garden use deep well pump manufacturers

Features
Edible oil filled motor, stable& reliable running withpressure regulating membrane;
Motor equipped with start box which built in capacitor ¤t mode thermal protector, convenient for replacement;
Pump sleeve with screw thread, single stage floating impellers;
Installation in5" or larger boreholes;

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid: PH6.0-8.5
Min.internal diameter of well>5"

Application:
Building/construction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	6	10	12	16	20
		KW	HP
1	XY130QJD12-35/4-1.1	1.1	1.5	2’	132	220/380	H{m}	45	40	38	35	20	8
2	XY130QJD12-40/5-1.5	1.5	2.0	2’	132	220/380		50	45	42	40	25	12
3	XY130QJD12-45/7-2.2	2.2	3.0	2’	132	220/380		60	55	48	45	32	16
4	XY130QJD12-60/9-3.0	3.0	4.0	2’	132	380		85	75	65	60	41	25
5	XY130QJD12-80/11-4.0	4.0	5.5	2’	132	380		105	90	85	80	51	30
6	XY130QJD12-105/15-5.5	5.5	7.5	2’	132	380		140	125	115	105	75	40
7	XY130QJD12-150/20-7.5	7.5	10.0	2’	132	380		185	165	160	150	95	52
