5In submersible pump 8T per hour factory
  • 5In submersible pump 8T per hour factory

5In submersible pump 8T per hour factory

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JAYCE
  • Model Number: XY130QJD4
  • Material: Stainless steel
  • Voltage: 220-240v/380-415V
  • Maximum diameter:130mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information
  • Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.0-8.5
    Min.internal diameter of well>5"

    Application:
    Building/construction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.
    XY130QJD Series model example

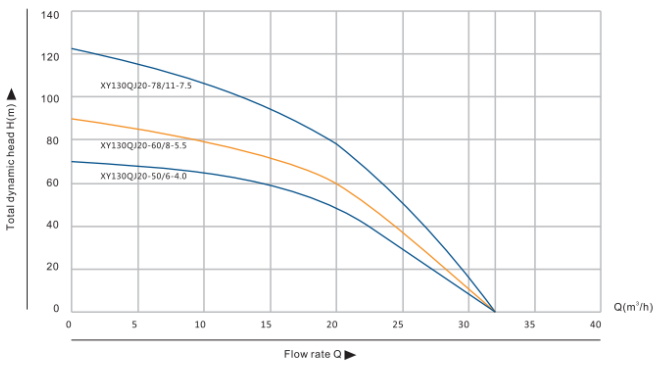

    XY130QJD20 Performance curve


    XY130QJD20 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)

    0

    12

    16

    20

    22

    24

    KW

    HP

    1

    XY130QJD20-50/6-4.0

    4.0

    5.5

    		 2/2.5’

    132

    380


    H{m}

    70

    60

    55

    50

    38

    27

    2

    XY130QJD20-60/8-5.5

    5.5

    7.5

    		 2/2.5’

    132

    380

    90

    75

    66

    60

    46

    35

    3

    XY130QJD20-78/11-7.5

    7.5

    10.0

    2/2.5’

    132

    380

    122

    102

    90

    78

    62

    52
