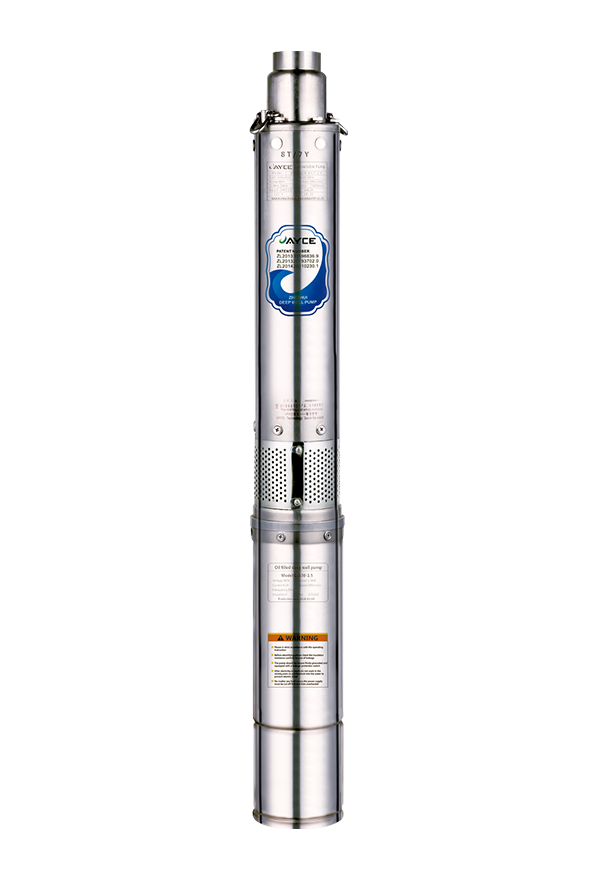

5In all stainless steel submersible pump Pricelist
  • 5In all stainless steel submersible pump Pricelist

5In all stainless steel submersible pump Pricelist

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JAYCE
  • Model Number: XY130QJD4
  • Material: Stainless steel
  • Voltage: 220-240v/380-415V
  • Maximum diameter:130mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information

  • Application Fields
    Building/construction work/Domestic water supply;
    Irrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.

    Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.0-8.5
    Min.internal diameter of well>5""

    Application:
    Building/construction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;Factory.

    XY130QJD Series model example

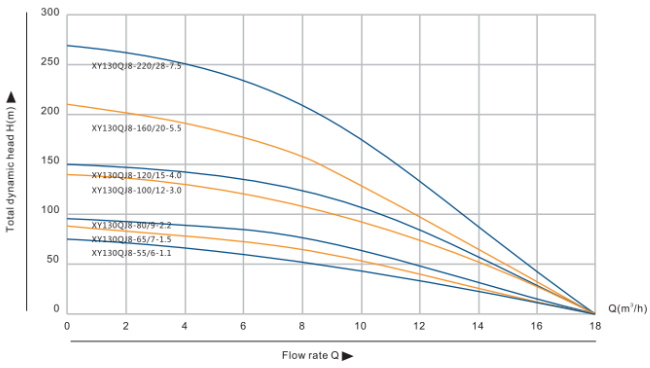

    XY130QJD8 Performance curve


    XY130QJD8 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)

    0

    4

    6

    8

    10

    14

    KW

    HP

    1

    XY130QJD8-55/6-1.1

    1.1

    1.5

    		 1.5’

    132

    220/380







    H{m}

    75

    65

    60

    55

    40

    17

    2

    XY130QJD8-65/7-1.5

    1.5

    2.0

    		 1.5’

    132

    220/380

    88

    75

    70

    65

    48

    21

    3

    XY130QJD8-80/9-2.2

    2.2

    3.0

    1.5’

    132

    220/380

    95

    85

    82

    80

    55

    25

    4

    XY130QJD8-100/12-3.0

    3.0

    4.0

    1.5’

    132

    380

    140

    120

    110

    100

    72

    36

    5

    XY130QJD8-120/15-4.0

    4.0

    5.5

    1.5’

    132

    380

    150

    130

    125

    120

    90

    45

    6

    XY130QJD8-160/20-5.5

    5.5

    7.5

    1.5’

    132

    380

    210

    180

    170

    160

    120

    55

    7

    XY130QJD8-220/28-7.5

    7.5

    10.0

    1.5’

    132

    380

    270

    240

    230

    220

    165

    75
