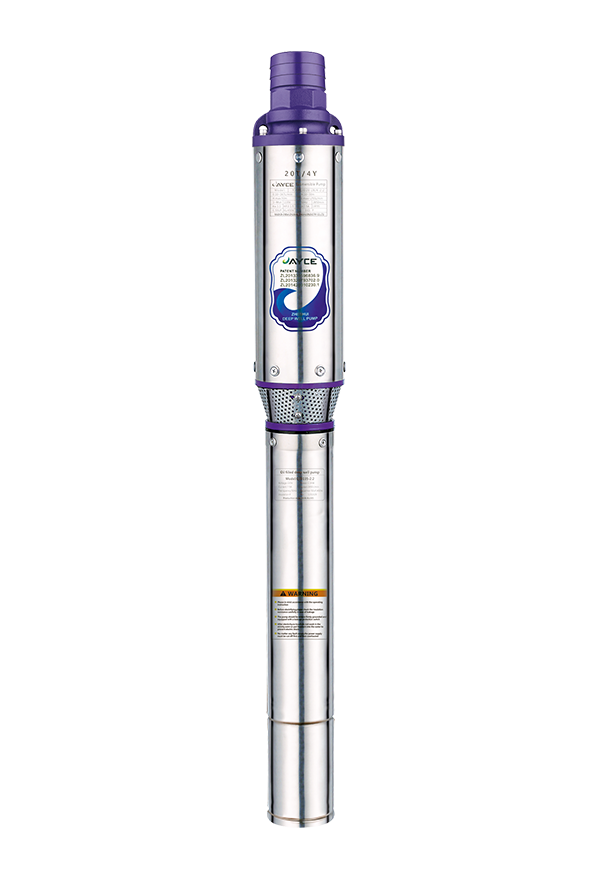

Agricultural Use deep well pump pricelist

Features
Edible oil filled motor, stable& reliable running with pressure regulating membrane;
Single phase motor equipped with start box which built in capacitor ¤t mode thermal protector, convenient for replacement;
Available with cable with a motor plug, disassemble conveniently;
Pump sleeve with screw thread, single stage floating impellers, except 16 m3/hrs series which with integrated stage floating impellers;
Installation in 5.5" or larger boreholes;
Optional available on request
Oil chamber is available with brass or SS304;Discharge chamber, Inlet parts are available with casting.

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid:PH6.0-8.5
Min.internal diameter of well>5.5""

Application:
Building/construction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	2	4	5	6	7
		KW	HP
1	Y135QJD5-27/3-0.55	0.55	0.75	1.5’	132	220	H{m}	40	36	31	27	24	20
2	Y135QJD5-36/4-0.75	0.75	1.0	1.5’	132	220		53	48	41	36	32	26
3	Y135QJD5-46/5-1.1	1.1	1.5	1.5’	132	220		66	60	52	46	40	32
4	Y135QJD5-65/7-1.5	1.5	2.0	1.5’	132	220		95	85	73	65	56	48
5	Y135QJD5-92/10-2.2	2.2	3.0	1.5’	132	220		135	120	104	92	80	65
