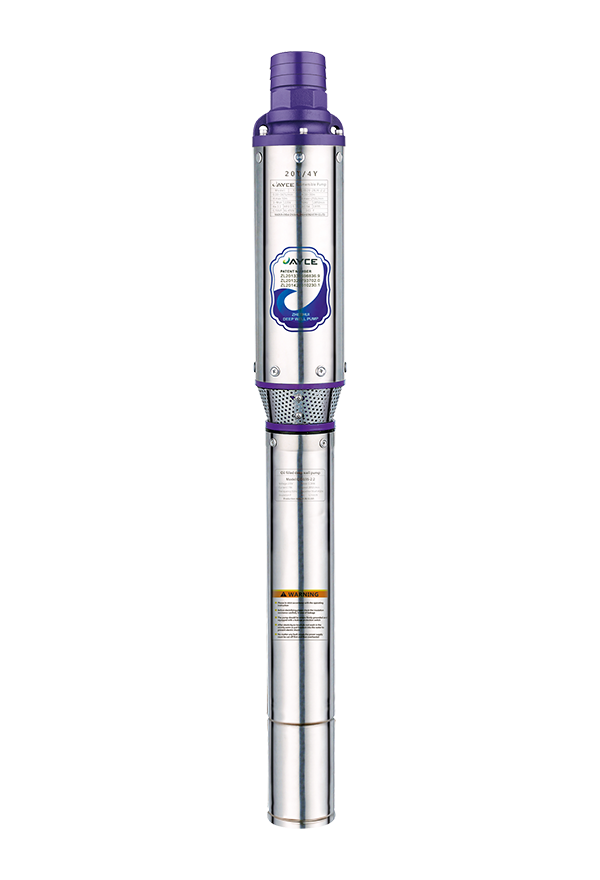

500 foot deep well pump quotation
  • 500 foot deep well pump quotation

500 foot deep well pump quotation

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JAYCE
  • Model Number: Y135QJD4
  • Material: Cast iron
  • Voltage: 220-240v/380-415V
  • Maximum diameter:135mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information

  • Featuring:
    Automatic re-start Ensures a reliable water supply when ever possible
    High starting torque Even at low supply voltage, the SQ delivers a reliable water supply

    Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.O-8.5
    Min.internal diameter of well>5.5""

    Application:
    Buildinglconstruction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.

    Y135QJD Series model example

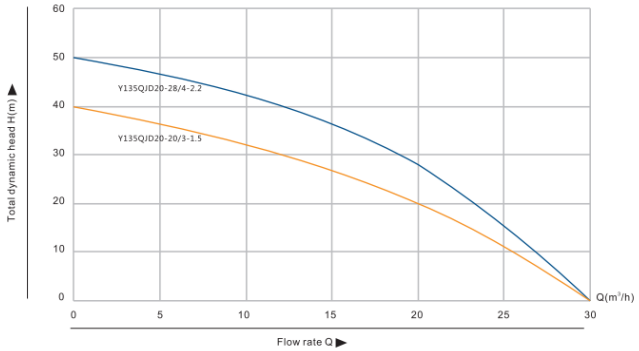

    Y135QJD20 Performance curve

    Y135QJD20 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)

    0

    12

    16

    20

    22

    24

    KW

    HP

    1

    Y135QJD20-20/3-1.5

    1.5

    2.0

    		 2-2.5’

    135

    220

    H{m}

    40

    30

    26

    20

    17

    13

    2

    Y135QJD20-28/4-2.2

    2.2

    3.0

    		 2-2.5’

    135

    220

    50

    40

    35

    28

    22

    18
