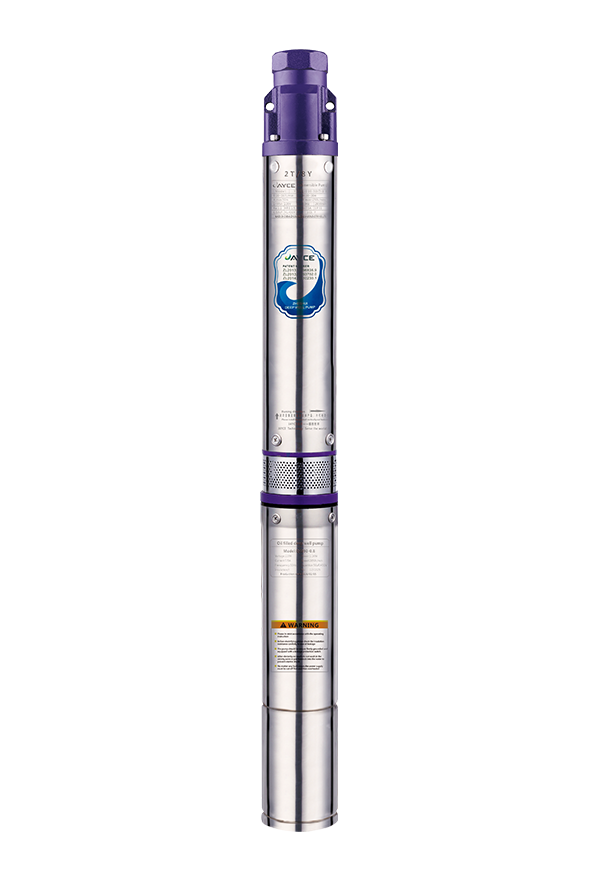

Customized deep well water pump household

Jayce persists in establishing a technology-centered creative platform. The QG series submersible screw pumps, 4SF series and QJ series deep well submersible pumps, etc are all independently researched and developed products. The 3 inch impeller pumps and 2 inch screw pumps are all domestic initiatives and have been well accepted by clients. Motor is the core of a pump’s quality. All the motors for Jayce pumps are produced by ourselves.

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid:PH6.0-8.5
Min.internal diameter of well>4""

Application:
Buildinglconstruction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	2	4	6	7	8
		KW	HP
1	XY100QJD6-58/12-1.1	1.1	1.5	1.5’	100	220/380	H{m}	77	73	65	58	47	37
2	XY100QJD6-75/15-1.5	1.5	2.0	1.5’	100	220/380		96	90	85	75	59	47
3	XY100QJD6-100/19-2.2	2.2	3.0	1.5’	100	220/380		128	115	110	100	75	60
4	XY100QJD6-125/26-3.0	3.0	4.0	1.5’	100	380		166	160	150	125	102	82
5	XY100QJD6-170/35-4.0	4.0	5.5	1.5’	100	380		224	215	200	170	138	110
6	XY100QJD6-215/44-5.5	5.5	7.5	1.5’	100	380		282	270	251	215	175	138
	XY100QJD6-260/54-7.5	7.5	10.0	1.5’	100	380		346	330	308	260	215	170
