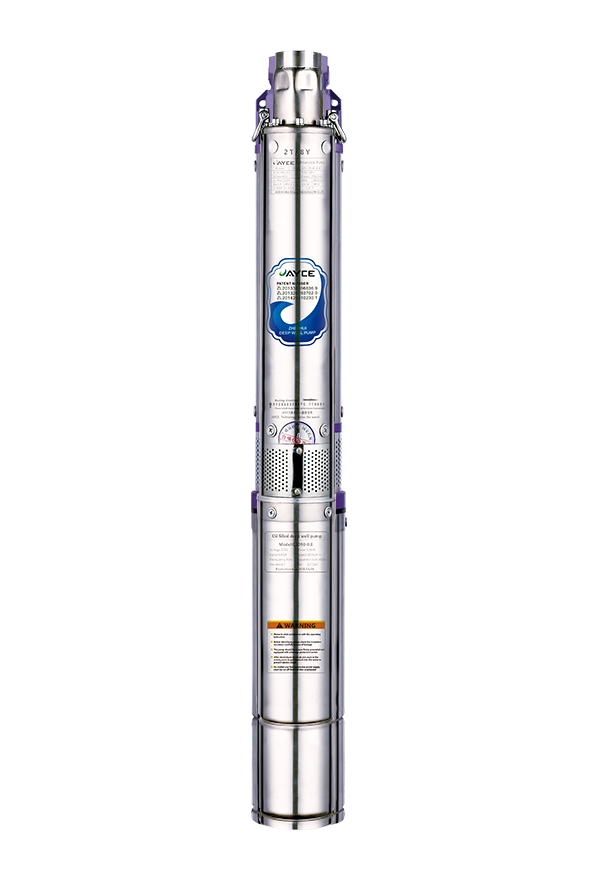

Customized 4In all stainless steel submersible pump

Features
Treated by high temperature quenching and precise processing straightening make the stainless steel impeller shaft  no bending, no wear to to reduce the motor load, low operation noise, Prolonging the service life .
Engineering plastic impeller
Make the product more flow,high head and prolonging service life

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid: PH6.0-8.5
Min.internal diameter of well>4""

Application:
Building/construction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

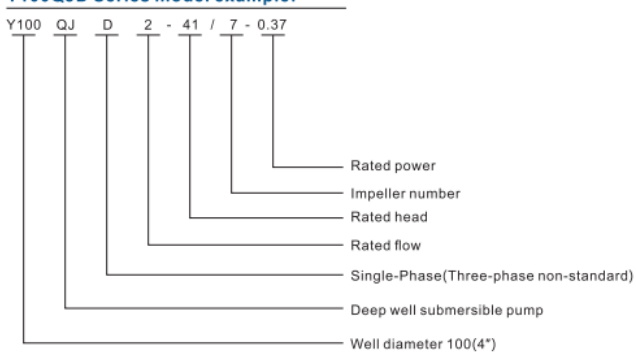

Y100QJD Series model example


Y100QJD2 Performance curve

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	1	2	3	4	5
		KW	HP
1	Y100QJD2-41/7-0.37	0.37	0.55	1.5’	100	220	H{m}	48	44	41	36	31	23
2	Y100QJD2-53/9-0.55	0.55	0.75	1.5’	100	220		62	57	53	47	38	30
3	Y100QJD2-64/11-0.75	0.75	1.0	1.5’	100	220		73	70	64	56	47	33
4	Y100QJD2-76/13-0.95	0.95	1.1	1.5’	100	220		113	108	100	67	58	40
5	Y100QJD2-87/15-1.1	1.1	1.5	1.5’	100	220		130	120	112	78	65	50
6	Y100QJD2-100/17-1.3	1.3	1.8	1.5’	100	220		90	90	90	90	80	60
7	Y100QJD2-112/19-1.5	1.5	2.0	1.5’	100	220		100	100	100	100	86	63
8	Y100QJD2-138/23-1.8	1.8	2.5	1.5’	100	220		153	146	138	125	107	84
9	Y100QJD2-150/26-2.2	2.2	3.0	1.5’	100	220		175	162	150	140	120	90
10	Y100QJD2-112/30-2.5	2.5	3.3	1.5’	100	220		210	205	185	153	112	60
