Customized 2T per hour submersible pump

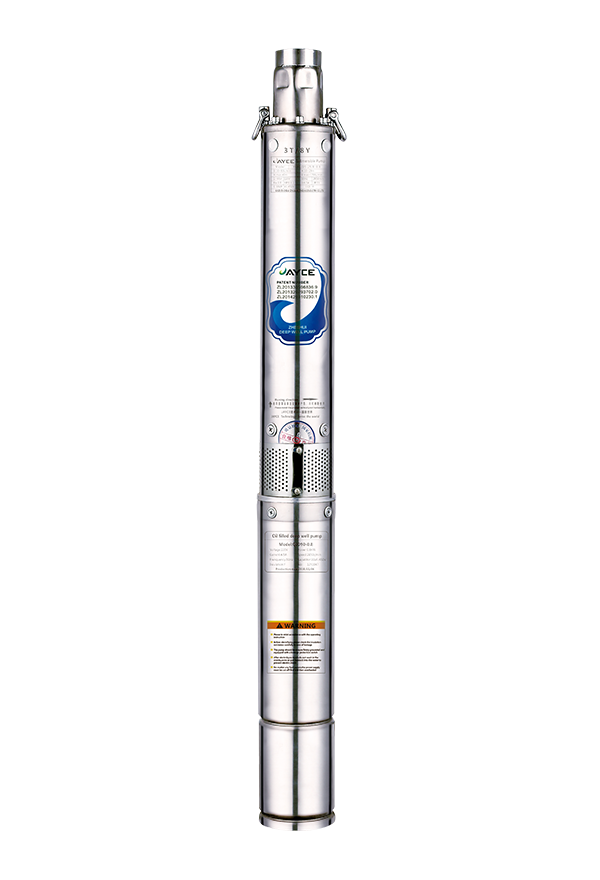

Product description Of Solar Powered Deep Well Submersible Pump
QJD series submersible well pump is made up of two main parts: electric motor and multi-grade pump body. The pump body is made up of impeller, guide vain, pump case, water inlet unit, water outlet unit, pump shaft, shaft sleeve and guide bearing. Motor uses double end mechanical seal. Rubber “O” ring is used as static seal.

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid: PH6.0-8.5
Min.internal diameter of well>4""

Application:
Building/construction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

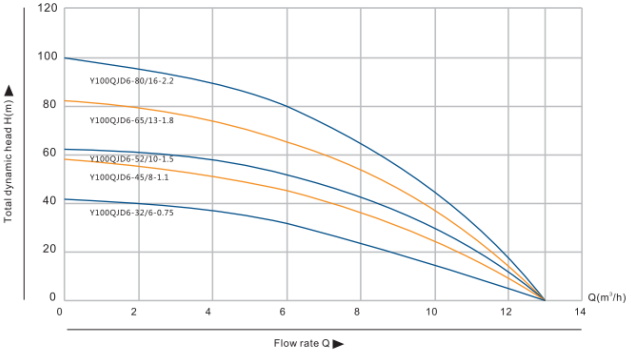

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	2	4	6	8	10
		KW	HP
1	Y100QJD6-32/6-0.75	0.75	1.0	1.5’	100	220	H{m}	42	38	39	32	25	18
2	Y100QJD6-45/8-1.1	1.1	1.5	1.5’	100	220		58	50	47	45	33	25
3	Y100QJD6-52/10-1.5	1.5	2.0	1.5’	100	220		62	60	56	52	40	30
4	Y100QJD6-65/13-1.8	1.8	2.5	1.5’	100	220		82	80	75	65	55	38
5	Y100QJD6-80/16-2.2	2.2	3.0	1.5’	100	220		100	95	87	80	65	45
