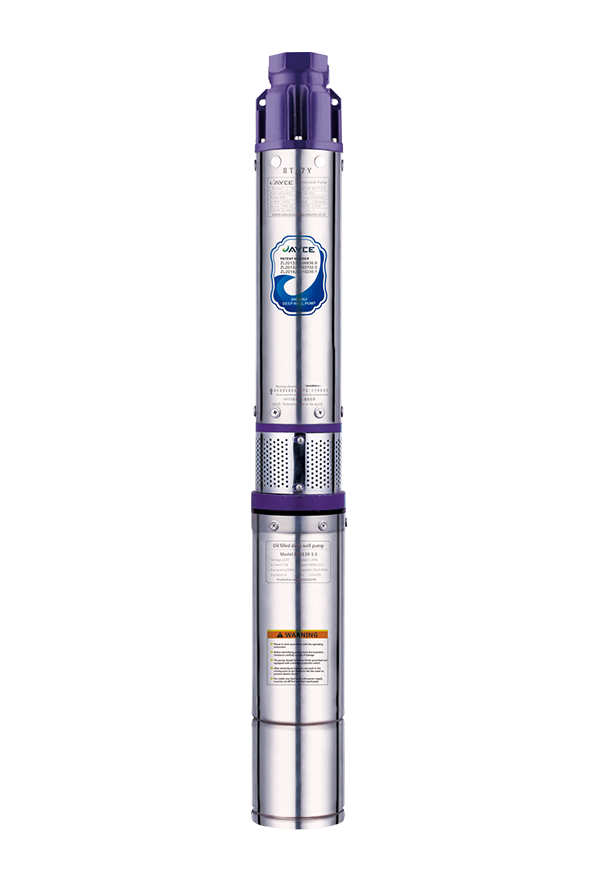

China electric deep well pump 4 inch factory

Features
The full stainless steel pump shell protects your water source without pollution
Engineering plastic impeller
Make the product more flow,high head and prolonging service life
Edible grade oil
To prevent pollution ensure the water safe

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid: PH6.0-8.5
Min.internal diameter of well>4""

Application:
Buildinglconstruction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

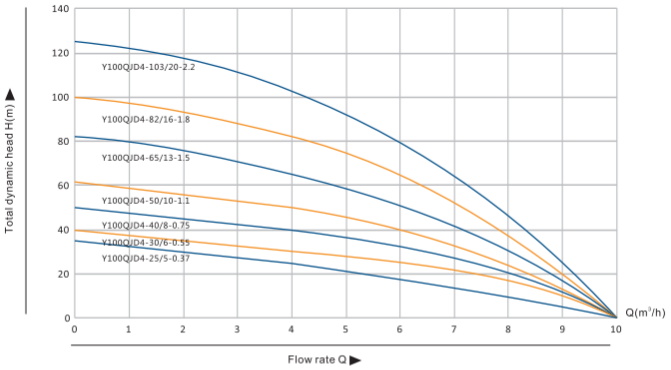

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	2	3	4	6	8
		KW	HP
1	Y100QJD4-25/5-0.37	0.37	0.55	1.5’	100	220	H{m}	35	30	28	25	17	10
2	Y100QJD4-30/6-0.55	0.55	0.75	1.5’	100	220		40	35	33	30	24	18
3	Y100QJD4-40/8-0.75	0.75	1.0	1.5’	100	220		50	48	43	40	30	21
4	Y100QJD4-50/10-1.1	1.1	1.5	1.5’	100	220		62	58	55	50	40	24
5	Y100QJD4-65/13-1.5	1.5	2.0	1.5’	100	220		82	77	72	65	52	32
6	Y100QJD4-82/16-1.8	1.7	2.5	1.5’	100	220		100	94	89	82	65	37
7	Y100QJD4-103/20-2.2	2.2	3.0	1.5’	100	220		125	118	111	103	81	46
