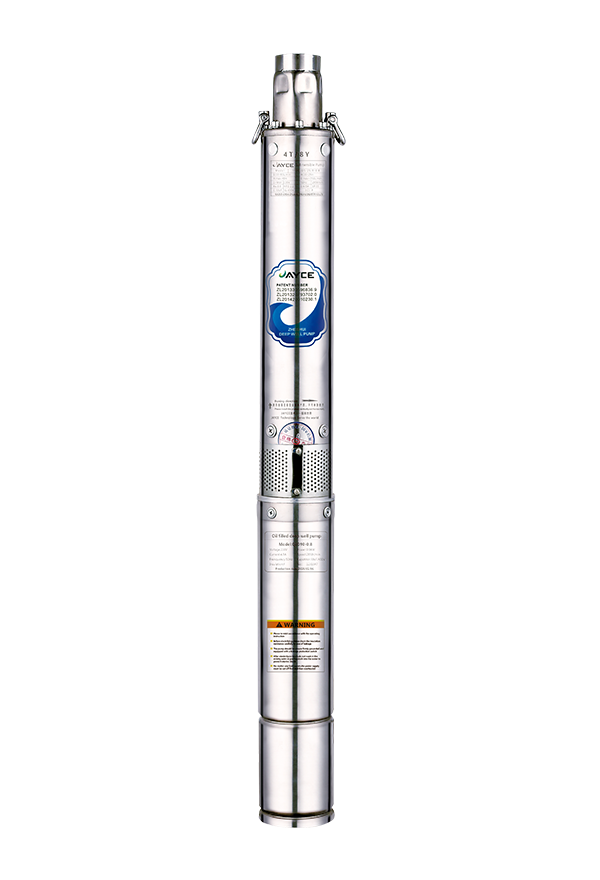

China civil deep well water pump suppliers
  • China civil deep well water pump suppliers

China civil deep well water pump suppliers

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JAYCE
  • Model Number: XY100QJD10
  • Material: stainless steel
  • Voltage: 220-240v/380-415V
  • Maximum diameter:100mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information

  • Application Fields
    Building/construction work/Domestic water supply;
    Irrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.

    Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.0-8.5
    Min.internal diameter of well>4""

    Application:
    Building/construction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.

    XY100QJD Series model example


    XY100QJD10 Performance curve


    XY100QJD10 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)



    0



    6.0



    8.0

    10.0

    12.0

    16.0

    KW

    HP

    1

    XY100QJD10-30/7-1.5

    1.5

    2.0

    		 2’

    98

    220/380







    H{m}

    40

    35

    32

    30

    23

    12

    2

    XY100QJD10-36/9-2.2

    2.2

    3.0

    		 2’

    98

    220/380

    45

    40

    38

    36

    28

    16

    3

    XY100QJD10-40/10-2.5

    2.5

    3.5

    2’

    98

    380

    50

    45

    42

    40

    31

    18

    4

    XY100QJD10-53/13-3.0

    3.0

    4.0

    2’

    98

    380

    73

    59

    55

    53

    42

    24

    5

    XY100QJD10-75/17-4.0

    4.0

    5.5

    2’

    98

    380

    93

    81

    78

    75
    60

    36

    6

    XY100QJD10-102/23-5.5

    5.5

    7.5

    2’

    98

    380

    120

    108

    105

    102

    77

    46

    7

    XY100QJD10-121/30-7.5

    7.5

    10.0

    2’

    98

    380

    153

    133

    125

    121

    99

    60
