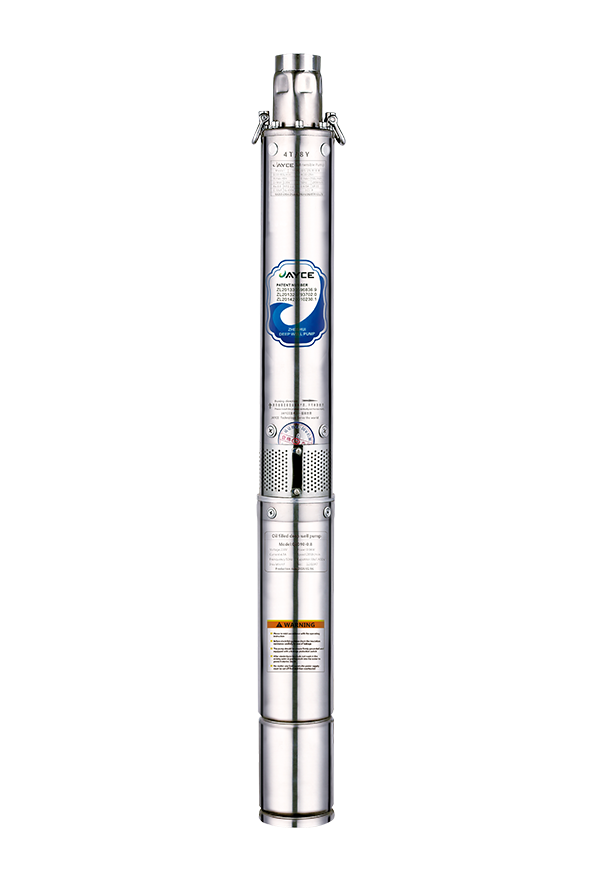

China 4In Deep Well Submersible Pump factory
  • China 4In Deep Well Submersible Pump factory

China 4In Deep Well Submersible Pump factory

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JAYCE
  • Model Number: XY100QJD4
  • Material: stainless steel
  • Voltage: 220-240v/380-415V
  • Maximum diameter:100mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information

  • Applications
    For water supply from wells
    For domestic use for civil and industrial applications
    For garden use and irrigation

    Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.0-8.5
    Min.internal diameter of well>4""

    Application:
    Building/construction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.

    XY100QJD Series model example

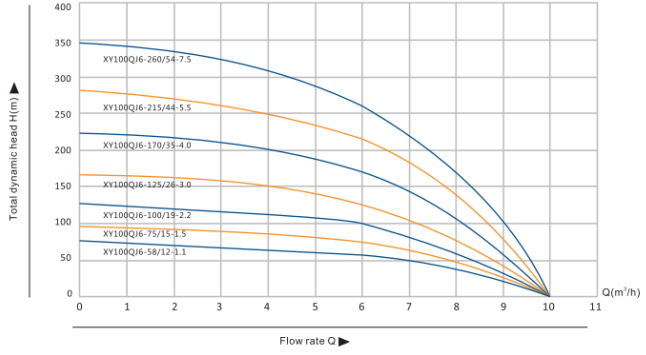

    XY100QJD6 Performance curve


    XY100QJD6 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)

    0

    2

    4

    6

    7

    8

    KW

    HP

    1

    XY100QJD6-58/12-1.1

    1.1

    1.5

    		 1.5’

    100

    220/380







    H{m}

    77

    73

    65

    58

    47

    37

    2

    XY100QJD6-75/15-1.5

    1.5

    2.0

    		 1.5’

    100

    220/380

    96

    90

    85

    75

    59

    47

    3

    XY100QJD6-100/19-2.2

    2.2

    3.0

    1.5’

    100

    220/380

    128

    115

    110

    100

    75

    60

    4

    XY100QJD6-125/26-3.0

    3.0

    4.0

    1.5’

    100

    380

    166

    160

    150

    125

    102

    82

    5

    XY100QJD6-170/35-4.0

    4.0

    5.5

    1.5’

    100

    380

    224

    215

    200

    170
    138

    110

    6

    XY100QJD6-215/44-5.5

    5.5

    7.5

    1.5’

    100

    380

    282

    270

    251

    215

    175

    138

    7

    XY100QJD6-260/54-7.5

    7.5

    10.0

    1.5’

    100

    380

    346

    330

    308

    260

    215

    170
