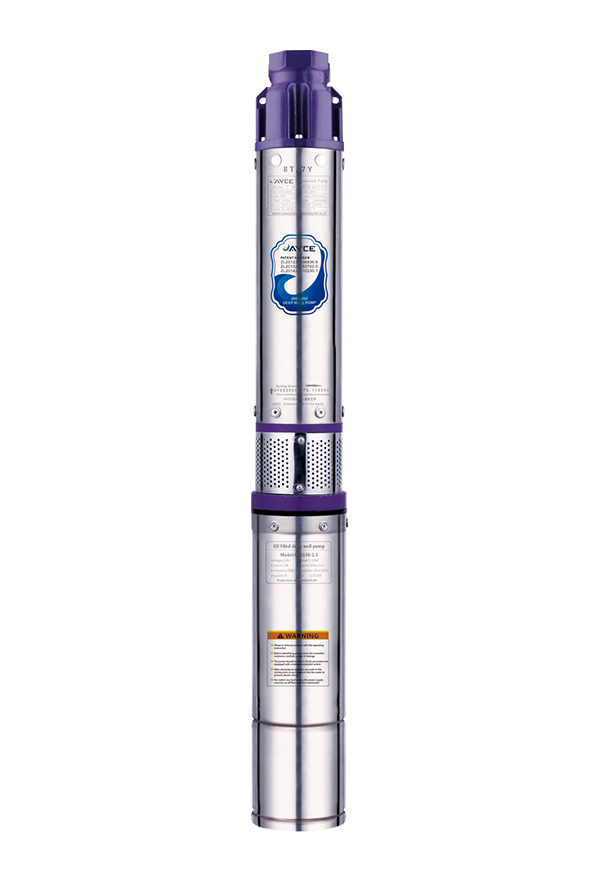

China 2HP deep well water pump suppliers
  • China 2HP deep well water pump suppliers

China 2HP deep well water pump suppliers

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JAYCE
  • Model Number: 100QJD4
  • Material: cast iron
  • Voltage: 220-240v
  • Maximum diameter:100mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information

  • Features
    separate packing motor can be equipped with the same power pump to reduce inventory
    Edible oil filled motor, stable& reliable running with pressure regulating membrane;
    Available with pump casing with plug, integrated stage floating impellers;
    Installation in 4" or larger boreholes.

    Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.0-8.5
    Min.internal diameter of well>4""

    Application:
    Building/construction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.

    Y100QJD Series model example


    Y100QJD6 Performance curve


    Y100QJD6 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)



    0



    2



    4

    6

    8

    10

    KW

    HP

    1

    Y100QJD6-32/6-0.75

    0.75

    1.0

    		 1.5’

    100

    220







    H{m}

    42

    38

    39

    32

    25

    18

    2

    Y100QJD6-45/8-1.1

    1.1

    1.5

    		 1.5’

    100

    220

    58

    50

    47

    45

    33

    25

    3

    Y100QJD6-52/10-1.5

    1.5

    2.0

    1.5’

    100

    220

    62

    60

    56

    52

    40

    30

    4

    Y100QJD6-65/13-1.8

    1.8

    2.5

    1.5’

    100

    220

    82

    80

    75

    65

    55

    38

    5

    Y100QJD6-80/16-2.2

    2.2

    3.0

    1.5’

    100

    220

    100

    95

    87

    80

    65

    45
