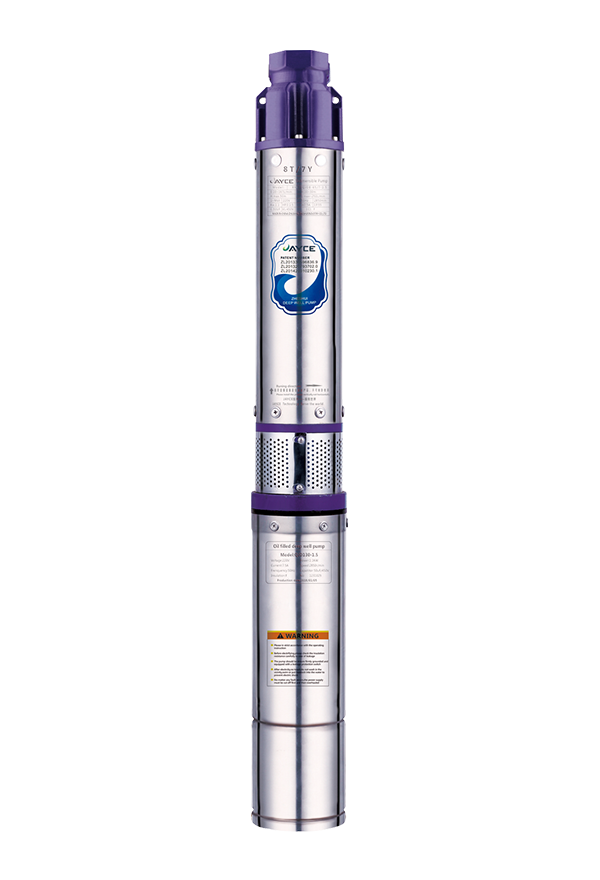

4In iron steel submersible pump quotation

Features
Engineering plastic impeller patent（Patent No：ZL 2016 2 0920147.7）, through the optimization design of hydraulic model make the product more flow,lift high, lower energy Consumption!
Double oil-seal
Its design features to assure positive, dependable seating protection.
100% copper wire and winding
Self made to control the quality and cost

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid: PH6.0-8.5
Min.internal diameter of well>4""

Application:
Buildinglconstruction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

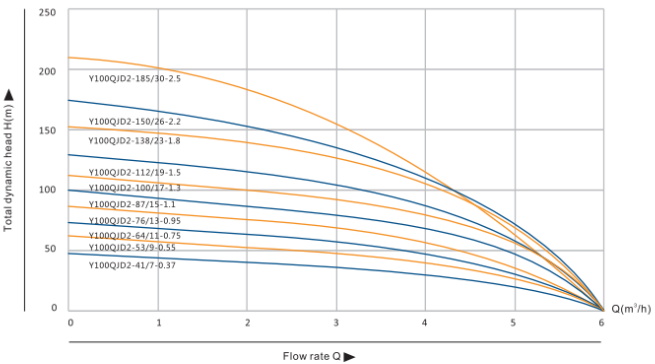

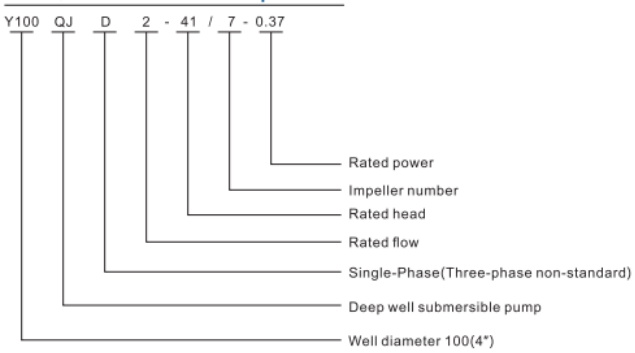

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	1	2	3	4	5
		KW	HP
1	Y100QJD2-41/7-0.37	0.37	0.55	1.5	100	220	H{m}	48	44	41	36	31	23
2	Y100QJD2-53/9-0.55	0.55	0.75	1.5’	100	220		62	57	53	47	38	30
3	Y100QJD2-64/11-0.75	0.75	1.0	1.5’	100	220		73	70	64	56	47	33
4	Y100QJD2-76/13-0.95	0.95	1.1	1.5’	100	220		87	82	76	67	58	40
5	Y100QJD2-87/15-1.1	1.1	1.5	1.5’	100	220		100	94	87	78	65	50
6	Y100QJD2-100/17-1.3	1.3	1.8	1.5’	100	220		113	108	100	90	80	60
7	Y100QJD2-112/19-1.5	1.5	2.0	1.5’	100	220		130	120	112	100	86	63
8	Y100QJD2-138/23-1.8	1.8	2.5	1.5’	100	220		153	146	138	125	107	84
9	Y100QJD2-150/26-2.2	2.2	3.0	1.5’	100	220		175	162	150	140	120	90
10	Y100QJD2-112/30-2.5	2.5	3.3	1.5’	100	220		210	205	152	153	112	60
