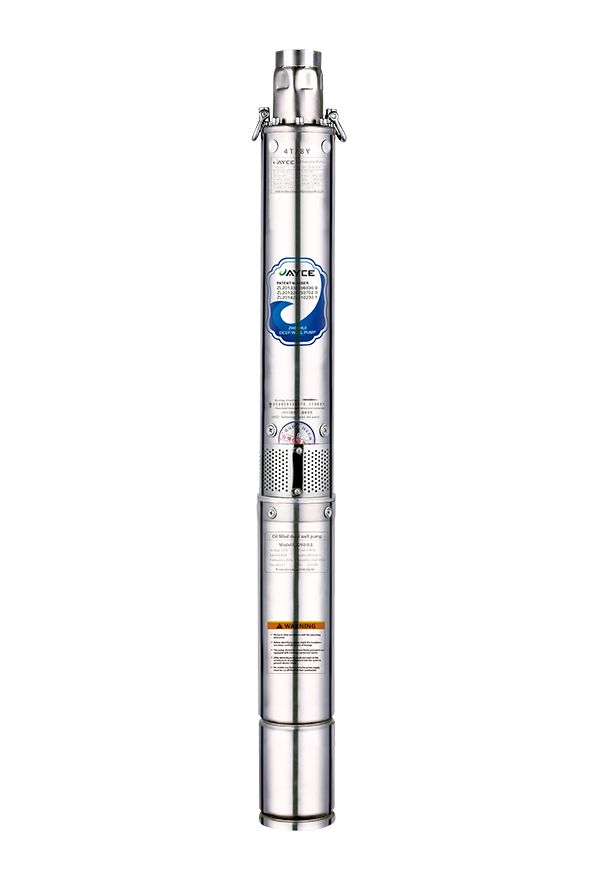

220V deep well pump manufacturers

Features
After many years of research, the motor part has been constantly adjusted to improve the coil data and cooperate with the imported cold  rolling 600 material stator and rotor, so that the Strong power can improve the efficiency of the product to make the energy conservation more availability.
Anti sand completely
Impeller unstuck
Dehydration non-burn the motor

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid: PH6.0-8.5
Min.internal diameter of well>4""

Application:
Building/construction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
water conservancy system;
Factory.

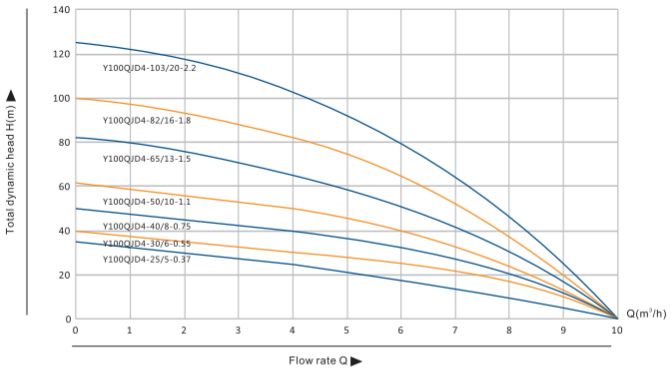

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	2	3	4	6	8
		KW	HP
1	Y100QJD4-25/5-0.37	0.37	0.55	1.5’	100	220	H{m}	35	30	28	25	17	10
2	Y100QJD4-30/6-0.55	0.55	0.75	1.5’	100	220		40	35	33	30	24	18
3	Y100QJD4-40/8-0.75	0.75	1.0	1.5’	100	220		50	48	43	40	30	21
4	Y100QJD4-50/10-1.1	1.1	1.5	1.5’	100	220		62	58	55	50	40	24
5	Y100QJD4-65/13-1.5	1.5	2.0	1.5’	100	220		82	77	72	65	52	32
6	Y100QJD4-82/16-1.8	1.8	2.5	1.5’	100	220		100	94	89	82	65	37
7	Y100QJD4-103/20-2.2	2.2	3.0	1.5’	100	220		125	118	111	103	81	46
