WARNING
Please in strict accordance with the operating instruction
Before electrifying，please check the insulation resistance carefully in case of leakage
The pump should be ensure firmly grounded and equipped with a leakage protection switch
After electricity, no touch, do not wash in the vicinity, swim or put livestock into the water to prevent electric shock
No matter any fault occurs, the power supply must be cut off first and then overhauled

Using condition:
Max.ambient temperature <35°
Max immersion depth 80m
Liquid: PH6.0-8.5
Min.internal diameter of well>4""

Application:
Buildinglconstruction work/Domestic water supply;
lrrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

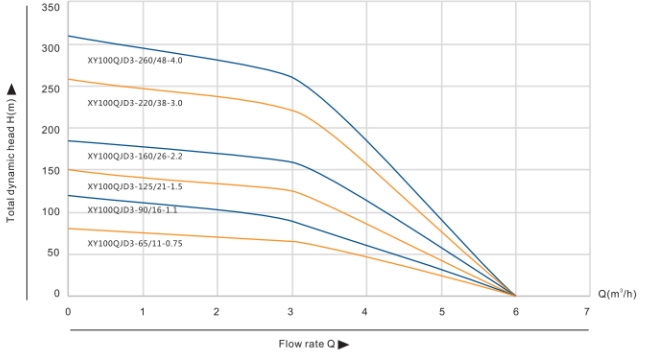

NO.	Model	Power		Outlet Diameter	Outside Dianeter(mm)	Voltage (v)	Flow Rate(m3/h)	0	1	2	3	4	5
		KW	HP
1	XY100QJD3-65/11-0.75	0.75	1.0	1’	100	220/380	H{m}	80	76	70	65	40	18
2	XY100QJD3-90/16-1.1	1.1	1.5	1’	100	220/380		120	110	102	90	58	26
3	XY100QJD3-125/21-1.5	1.5	2.0	1’	100	220/380		150	138	130	125	72	32
4	XY100QJD3-160/26-2.2	2.2	3.0	1’	100	220/380		185	180	166	160	93	40
5	XY100QJD3-220/38-3.0	3.0	4.0	1’	100	380		260	248	233	220	142	60
6	XY100QJD3-260/48-4.0	4.0	5.5	1’	100	380		310	290	275	260	175	70
