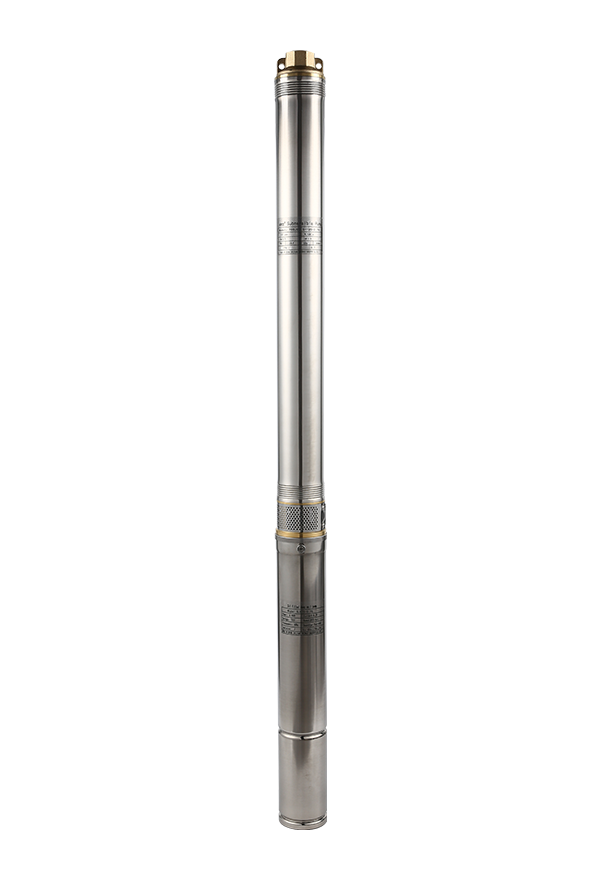

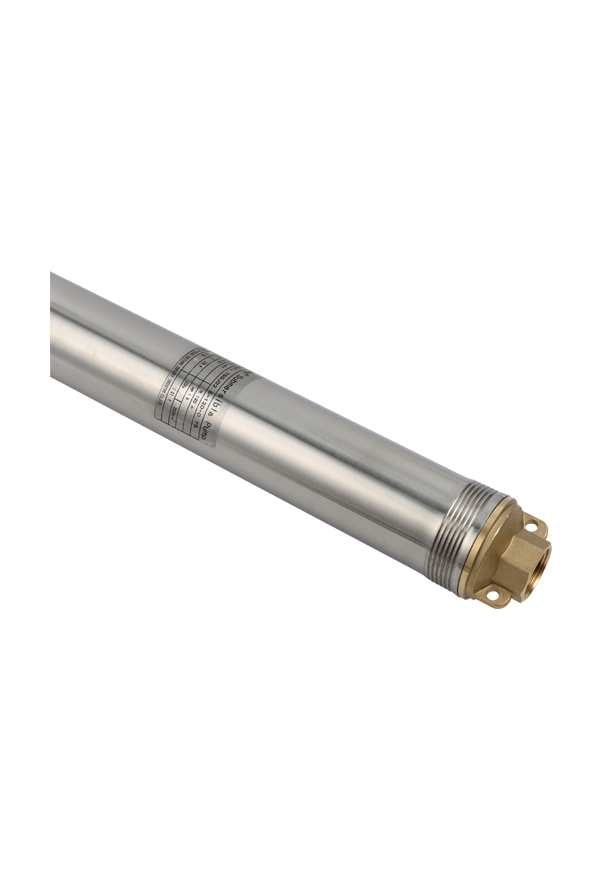

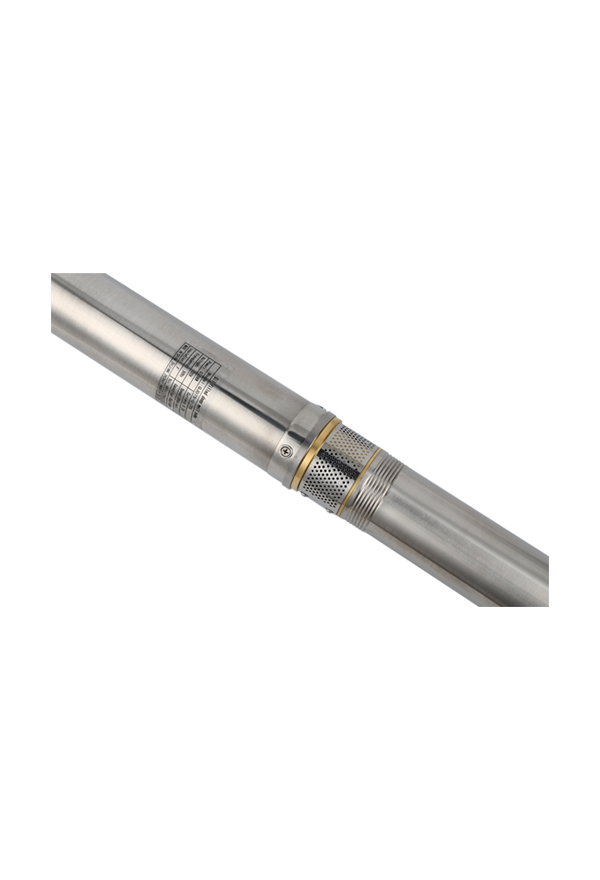

Small and easy to install deep well pump manufacturers
  • Small and easy to install deep well pump manufacturers
  • Small and easy to install deep well pump manufacturers
  • Small and easy to install deep well pump manufacturers

Small and easy to install deep well pump manufacturers

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: JAYCE
  • Model Number: Y75QJD
  • Material: stainless steel
  • Voltage: 220-240v
  • Maximum diameter:75mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information
  • Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.0-8.5
    Min.internal diameter of well>3""

    Application:
    Buildinglconstruction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.
    Y75QJD Series model example

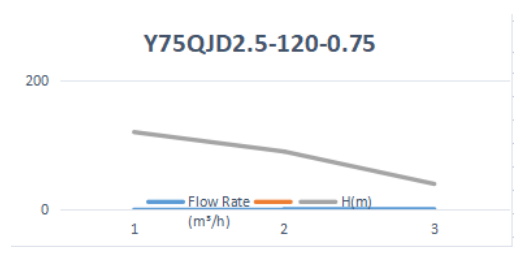

    Y75QJD2.5 Performance curve


    Y75QJD2.5 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)


    0


    1


    2

    KW

    HP

    1

    Y75QJD2.5-120-0.75

    0.75

    1.0

    		 1’

    75

    220

    H{m}

    120

    90

    40
