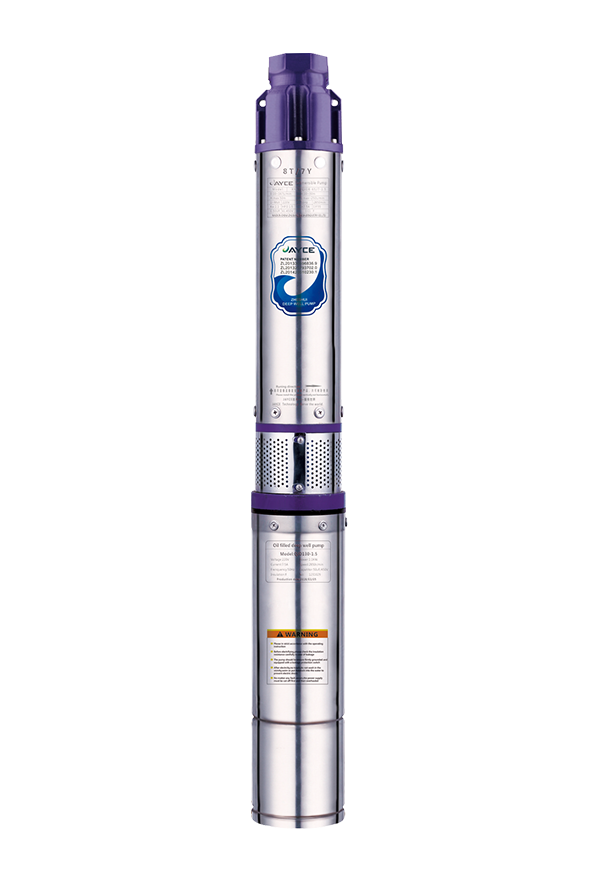

China 3.5 inch oil-filled deep well pump factory
  • China 3.5 inch oil-filled deep well pump factory

China 3.5 inch oil-filled deep well pump factory

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Jiadi
  • Model Number: 90QJD5
  • Material: cast iron
  • Voltage: 220-240v
  • Maximum diameter:90mm
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: High Pressure
  • Application: Submersible
  • Motor: oil filled,100% Copper Wire
  • Highest temperature of liquid: 35 ℃
+86 0576-80611678 Contact Us
  • Description
  • Additional Information

  • Features
    Energy-saving rotor
    Only use selected raw material 304 stainless steel motor rotor head
    Impeller unstuck
    Dehydration non-burn the motor
    Green
    High quality

    Using condition:
    Max.ambient temperature <35°
    Max immersion depth 80m
    Liquid: PH6.0-8.5
    Min.internal diameter of well>3.5""

    Application:
    Building/construction work/Domestic water supply;
    lrrigation and Small water work;
    Landscaping;
    Water conservancy system;
    Factory.

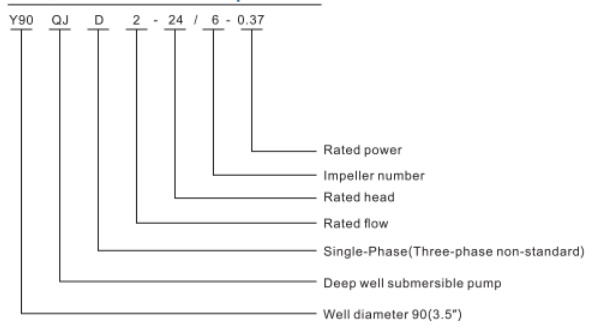

    Y90QJD Series model example

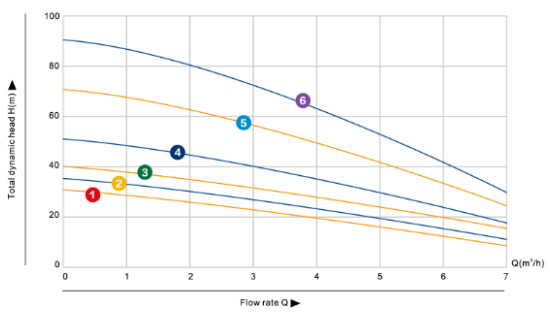

    Y90QJD5 Performance curve


    Y90QJD5 Series technical parameters


    NO.


    Model


    Power


    Outlet Diameter


    Outside

    Dianeter(mm)


    Voltage

    (v)


    Flow Rate(m3/h)



    0



    2.0



    3.0

    5.0

    6.0

    7.0

    KW

    HP

    1

    Y90QJD5-21/6-0.4

    0.4

    0.4

    		 1.5’

    88

    220







    H{m}

    30

    28

    24

    21

    15

    9

    2

    Y90QJD5-25/7-0.6

    0.6

    0.8

    		 1.5’

    88

    220

    35

    33

    28

    25

    18

    12

    3

    Y90QJD5-29/8-0.8

    0.8

    1.0

    1.5’

    88

    220

    40

    38

    32

    29

    21

    14

    4

    Y90QJD5-35/10-0.9

    0.9

    1.1

    1.5’

    88

    220

    50

    48

    40

    35

    26

    17

    5

    Y90QJD5-48/14-1.1

    1.1

    1.5

    1.5’

    88

    220

    70

    67

    56

    48

    		 36

    24

    6

    Y90QJD5-65/18-1.5

    1.5

    2.0

    1.5’

    88

    220

    90

    86

    72

    65

    		    46

    30
